More Profit Less Headaches

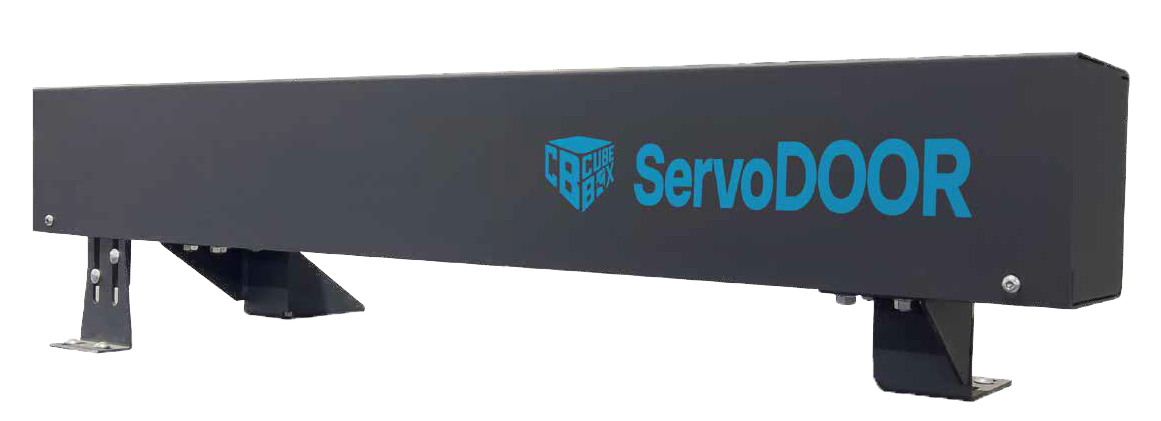

ServoDOOR

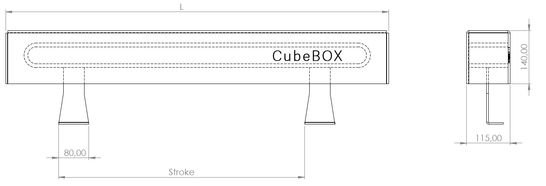

CubeBOX ServoDOOR

CubeBOX<sup>™</sup> ServoDOOR
StrokeL
2x750 1950
2x1000 2450
2x1250 2950
2x1500 3450
2x2000 4450

Energy Consumption: It reduces costs to a minimum level. The energy consumption of its equal to a 65W light bulb during operation.

Operator Errors: It communicates with the CNC minimizing the errors and malfunctions caused by the operators. The ServoDOOR is a universal system that can be connected to any brand of new or present CNC machines.

CubeBOX ServoDOOR - Single Door

CubeBOX<sup>™</sup> ServoDOOR - Single Door
StrokeL
750 1000
1115 1365
1615 2115
2115 2365

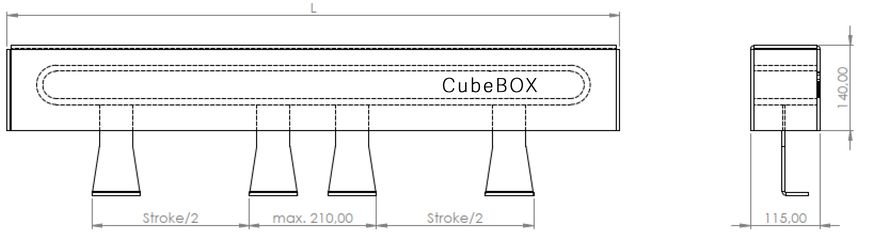

CubeBOX ServoDOOR - Double Door

CubeBOX<sup>™</sup> ServoDOOR - Double Door
StrokeL
750 1000
1115 1365
1615 2115
2115 2365

Efficiency: Easy single cable field installation and calibration for service technicians. No extra boxes to mount.

Auto Doors

14. CNC Door Automation Model Length Part Number Net Price List Price
SS Series Servo-Single Automatic Door 750-SS (750 mm opening) L= 1000 mm 14.10a $ 4,400.00 $ 7,460.00
SS Series Servo-Single Automatic Door 1115-SS (1115 mm opening) L= 1365mm 14.30a $ 4,400.00 $ 7,460.00
SS Series Servo-Single Automatic Door 1615-SS (1615 mm opening) L= 1865 mm 14.20a $ 5,200.00 $ 8,820.00
SS Series Servo-Single Automatic Door 2115-SS (2115 mm opening) L=2365 mm 14.50a $ 6,000.00 $ 10,170.00
SD Series Servo-Double Automatic Door 1000-SD (1000 mm opening) L= 1365 mm 14.40a $ 4,600.00 $ 7,800.00
SD Series Servo-Double Automatic Door 1500-SD (1500 mm opening) L= 1865 mm 14.60a $ 5,200.00 $ 8,820.00
SD Series Servo-Double Automatic Door 2000-SD (2000 mm opening) L= 2365 mm 14.70a $ 5,700.00 $ 9,670.00
SD Series Servo-Double Automatic Door 2500-SD (2500 mm opening) L= 2865 mm 14.80a $ 6,100.00 $ 10,340.00
SD Series Servo-Double Automatic Door 3000-SD (3000 mm opening) L= 3365 mm 14.90a $ 7,900.00 $ 13,390.00
SD Series Servo-Double Automatic Door 3500-SD (3500 mm opening) L= 3865 mm 14.92a Special Order Special Order
SD Series Servo-Double Automatic Door 4000-SD (4000 mm opening) L= 4365 mm 14.93a Special Order Special Order
S2D Series 2 Servo-Double automatic Door 750-S2D (1500 mm opening) L= 1950 mm 23.10a $ 7,200.00 $ 12,210.00
S2D Series 2 Servo-Double automatic Door 1000-S2D (2000 mm opening) L= 2450 mm 23.20a $ 8,400.00 $ 14,240.00
S2D Series 2 Servo-Double automatic Door 1250-S2D (2500 mm opening) L= 2950 mm 23.30a $ 10,300.00 $ 17,460.00
S2D Series 2 Servo-Double automatic Door 1500-S2D (3000 mm opening) L= 3450 mm 23.40a $ 11,300.00 $ 19,160.00
S2D Series 2 Servo-Double automatic Door 2000-S2D (4000 mm opening) L= 4000 mm 23.50a $ 12,100.00 $ 20,510.00
Side Auto Door System, Pneumatic Tezmaksan Custom design 18.10b $ 5,270.00 $ 8,940.00
Side Auto Door System, Pneumatic Midaco, Haas style 18.20a $ 5,695.00
CNC Door Automation Pneumatic Cylinder 18.30a $ 2,840.00 $ 4,820.00
Parts Net Price List Price
27.1 ServoDOOR Servo Motor Tezmaksan 1 Piece SP 27.10A $ 1,500.00 $ 2,600.00
27.2 ServoDOOR Control Board Tezmaksan 1 Piece SP 27.20A $ 1,700.00 $ 2,900.00
27.3 ServoDOOR Tensioning Mechanism Tezmaksan 1 Piece SP 27.30A $ 200.00 $ 400.00
27.4 ServoDOOR Servo Motor Pulley Tezmaksan 1 Piece SP27.40A $ 100.00 $ 200.00
27.5 ServoDOOR Servo Motor Belt (meter) Tezmaksan 1 Piece SP 27.50A $ 100.00 $ 200.00
